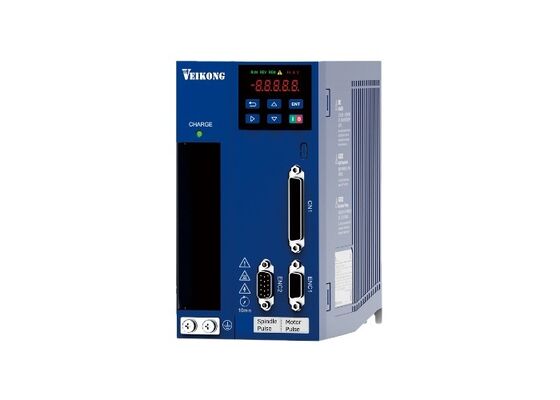

High-Performance Spindle Motor Drive for CNC Grinders and Machining Centers

Product Overview

The S6 series is a specialized servo drive engineered specifically for spindle applications in CNC machining equipment. It is built with a brand new design framework that delivers enhanced functionality and flexible configuration options. The drive is ideal for controlling spindle motors in CNC lathes, CNC milling machines, machining centers, grinders, and other precision CNC equipment.

Product Features

Wide Power Coverage
The S6 series is available in 220V models ranging from 2.2kW to 5.5kW and 380V models ranging from 4.0kW to 11kW, making it suitable for a broad spectrum of machine tool applications.

Exceptional Overload Capability
The drive provides 150% rated output current for 60 seconds and 200% rated output current for 8 seconds, ensuring reliable performance during heavy cutting and sudden load changes.

Intelligent Motor Self-Tuning
The built-in self-learning function automatically identifies motor parameters and mechanical characteristics, significantly reducing commissioning time and ensuring optimal performance even with third-party motors.

Precision Position Control
The drive supports both semi-closed loop and full closed loop position control modes, achieving positioning accuracy of ±1 pulse for high-precision machining operations.

Multi-Interface Compatibility
The S6 series supports multiple CNC interface options including analog pulse, EtherCAT bus, and M3 bus, allowing seamless integration with various CNC systems.

Comprehensive Encoder Support
It is compatible with TTL differential output, Tamagawa absolute value, SinCos, and SSI/BISS protocol encoders. The drive also supports arbitrary frequency division output for flexible system design.

High-Speed Field Weakening Performance
The drive maintains strong torque output even in the field weakening region, enabling high-speed spindle operation without sacrificing performance.

Compact Structural Design
The S6 series features a revolutionary compact design, occupying 46% to 55% less space than the previous S5 series, which helps reduce cabinet size and installation costs.

Dust-Proof Air Duct Design
The independent air duct design effectively prevents dust and contaminants from entering the drive, reducing the risk of short circuits and improving long-term reliability.

Efficient Thermal Management
Equipped with large air volume, long-life cooling fans, the drive maintains low internal temperatures even under continuous heavy-duty operation, ensuring stable and reliable performance.

Robust Hardware Architecture
The integrated IGBT module with generous design margin delivers superior stability compared to discrete IGBT solutions. The drive also features reliable overcurrent protection, short circuit protection, and excellent anti-electromagnetic interference capability.

User-Friendly Maintenance Design
The motor encoder and spindle encoder interfaces are separated for simplified wiring and easier maintenance. The newly upgraded silicone keypad provides a more comfortable and responsive user experience.

Industries We Serve

VEIKONG products are trusted across a wide range of industries, including solar pumping, petroleum and petrochemical, chemical processing, metallurgy and melting, hoisting and lifting, electric power generation and distribution, building materials manufacturing, water supply and treatment, plastics processing, textile production, printing, and packaging.

The S6 series is specifically tailored for the CNC machining industry, with primary applications in CNC lathes, CNC milling machines, machining centers, and precision grinders.

Why Choose VEIKONG?

Seamless Brand Replacement
Our drives are designed to meet international advanced standards, enabling direct replacement of European, American, and Japanese brands without compromising performance or requiring system modifications.

Internationally Recognized Quality
VEIKONG operates under strict ISO9001 quality management systems. Our products have successfully obtained CE and IEC certifications, demonstrating compliance with global safety and performance standards.

Two Decades of Industry Expertise
With over 20 years of experience in R&D and manufacturing, VEIKONG is recognized as one of the pioneering independent AC drive manufacturers in China.

Commitment to Customer Success
We place our customers at the center of everything we do. Our team is dedicated to understanding your specific needs and delivering solutions that exceed expectations.

Superior Product Longevity
Every VEIKONG product is backed by a 24-month warranty, reflecting our confidence in the quality and durability of our drives.

End-to-End Technical Support
Our professional R&D and engineering team provides comprehensive technical support throughout the entire project lifecycle, from product selection to commissioning and after-sales service.

Cost-Effective Solution
By combining competitive pricing, high performance, and long-term reliability, VEIKONG delivers exceptional value for customers seeking a dependable spindle drive solution without the premium cost of legacy brands.

Company Profile

Shenzhen VEIKONG ELECTRIC CO., LTD is a well-established high-tech enterprise specializing in the research, development, manufacturing, and trading of medium and low voltage inverters and solar pumping inverters. As an integrated solutions provider, VEIKONG combines a strong professional R&D team with dedicated management, backed by over 20 years of industry experience.

The company integrates advanced technologies including high-efficiency MPPT algorithms, SPWM modulation, sensorless vector control, and torque control into its product portfolio. These technologies have reached internationally recognized standards, positioning VEIKONG as a direct competitor to established European, American, and Japanese brands.

Quality remains the cornerstone of VEIKONG's operations. The company strictly adheres to ISO9001 standards across all manufacturing and management processes, and continuously invests in product innovation to address evolving market demands and customer requirements.

VEIKONG firmly believes that customers are the foundation of the business. The company is committed to delivering value through reliable products, responsive service, and long-term partnerships, serving customers across diverse industries worldwide.

What Makes S6 Stand Out

Industry-Specific Design
Unlike general-purpose drives, the S6 is purpose-built for spindle applications, delivering optimized performance for CNC machining operations.

Versatile CNC Integration
With support for multiple communication protocols and encoder types, the S6 integrates seamlessly into both new and existing CNC systems.

Superior Power Density
The compact design combined with high overload capacity delivers exceptional power density, making the S6 ideal for space-constrained machine tool applications.

Reliability in Harsh Environments
The independent air duct and robust thermal management system ensure consistent operation even in demanding workshop conditions with dust and temperature fluctuations.

Simplified Commissioning
The intelligent self-tuning function and user-friendly interface significantly reduce setup time, enabling faster machine deployment and reduced downtime.

Future-Ready Architecture
With support for EtherCAT and other advanced communication protocols, the S6 is prepared for the growing demands of Industry 4.0 and smart factory integration.
